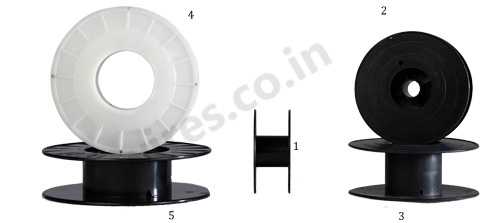

| Sr. No | Ref. No. | Flange Dia (d1) | Barrel Dia (d2) | Length | Traverse (L2) | Bore (d4) | Winding Capacity |
|---|---|---|---|---|---|---|---|
| 1 | SD100 | 100 | 38 | 45 | 38.5 | 16.5 | 1.5 Kgs |
| 2 | SD200 | 200 | 105 | 55 | 45 | 51.5 | 5 Kgs |
| 3 | SD270 | 270 | 148 | 105 | 89 | 53 | 20 Kgs |
| 4/5/6 | SD300 / HD15 | 300 | 212 | 103 | 91 | 51.5 | 15 Kgs |

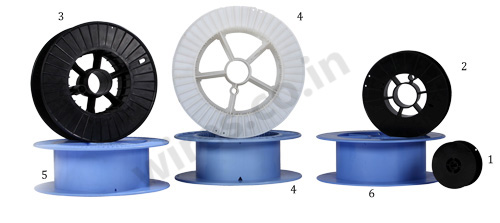

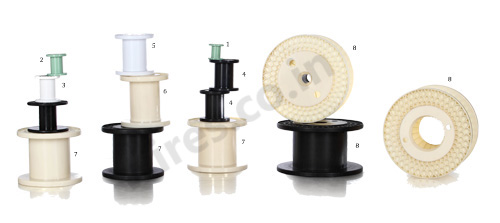

| Sr. No. | Ref. No | Flange Dia (d1) | Barrel Dia (d2) | Traverse (L2) | Overall (L1) | Bore (d4) |
|---|---|---|---|---|---|---|
| 1 | SD-2 | 133 | 53 | 44 | 50 | 18 |
| 2 | SD-3 | 138 | 53 | 48 | 57 | 18 |
| 3 | SD-4 | 154 | 67 | 56 | 63 | 18 |
| 4 | SD-5 | 171 | 72 | 53 | 61.5 | 68 |
| 5 | SD-10 | 225 | 72 | 53 | 61.5 | 68 |
| 6 | 200 | 200 | 125 | 200 | 160 | 22, 36 |
| 7 | 250 | 250 | 160 | 200 | 160 | 22, 36, 102 |
| 8 | 355 | 355 | 224 | 200 | 160 | 36, 52 |

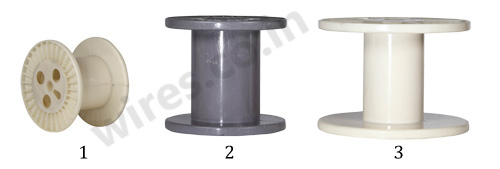

| Sr. No. | Ref-No | Flange Dia (d1) | Barrel Dia (d2) | Traverse (L2) | Overall (L1) | Bore (d4) |
|---|---|---|---|---|---|---|
| 1 | US-4 | 152 | 90 | 90 | 110 | 16.4 |
| 2 | US-200 | 200 | 114 | 151 | 183 | 32.50 |
| 3 | US-250 | 254 | 102 | 157.5 | 183 | 32.50 |

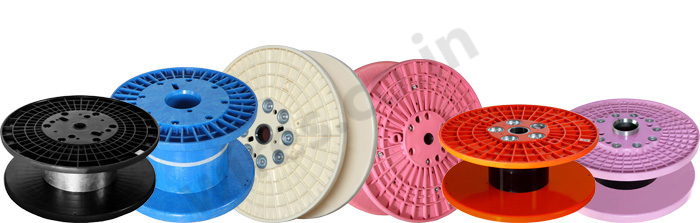

| Sr. No. | Model No. | Flange Dia (d1) | Barrel Dia (d2) DIN | Traverse (L2) | Bore (d4) | Overall (L1) |
|---|---|---|---|---|---|---|
| 1 | PF/TC/400 A | 400 | 200 | 200–300 | 36–56 | 250–350 |
| 2 | PF/TC/400 B | 400 | 142 | 200–300 | 36–56 | 250–350 |
| 3 | PF/TC/432 | 432 | 204 | 200–300 | 36–56 | 250–350 |
| 4 | PF/TC/450 | 450 | 200–300 | 250–300 | 36–56 | 300–350 |
